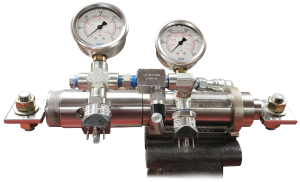

Tensile Strength and Ductility Testing Tool (TSDT)

Product Description

The Tensile Strength and Ductility Testing Tool (TSDT) is a must-have for every wireline shop looking to ensure the quality of their wireline, protect themselves from the costly dangers of corrosive well-bore environments, and ensure quality training of hands responsible for performing reheads. And now, this device can also be used to perform quick and easy line tension calibrations on perforator measuring heads!

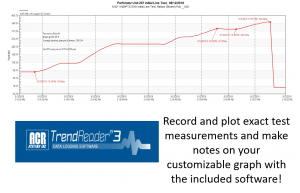

If a spool of wireline is damaged on a job, and the fault belongs to any company other than the wireline service company, the company at fault may require proof that they damaged the line before paying for the line. The TSDT package makes it possible to provide quantitative data that tracks the integrity of the line. Not only are gauges easily visible on the machine, but measurements from the built-in transducers are recorded and plotted on a chart via the Owl Data Logger and ACR Trendreader Software that comes included with the TSDT package.

The Tensile Strength and Ductility Testing Tool (TSDT) comes in a compact package that can be used to quickly perform any of the following:

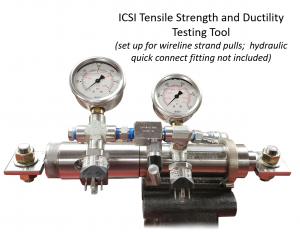

  • Strand Tensile Strength Pull Test
    (Radius Pull or Straight Pull)
  • Wrap Test
  • Torsion Test

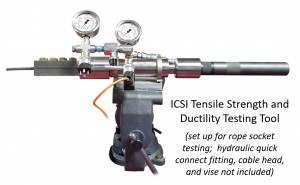

  • Cable Head Pull Test

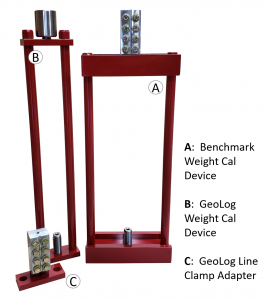

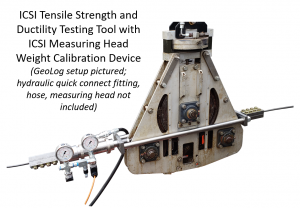

  • Weight Indicator Calibration
    (with additional weight cal device)

The Tensile Strength and Ductility Testing Tool (TSDT) comes in a compact, mobile package that can easily be moved around the shop or quickly taken to location in case of a line emergency.

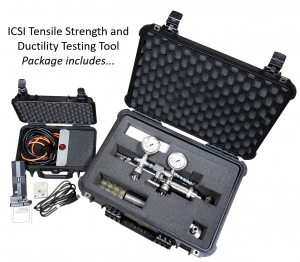

TSDT Package includes:

  • Pelican cases
  • Power box
  • Cable Head Adapter
  • Line Clamp Adapter
  • ACR Trendreader Software
  • Owl Model 500 Data Logger
  • Light Wand USB Cable
  • Illuminated Microscope
